Circular Motion Vibrating Screen Manufacturers

DYS Large
Circular Motion Vibrating Screen

Advanced structure, vertical solidity and durability, low vibration and noise, not easy to block holes, high processing capacity, and convenient maintenance

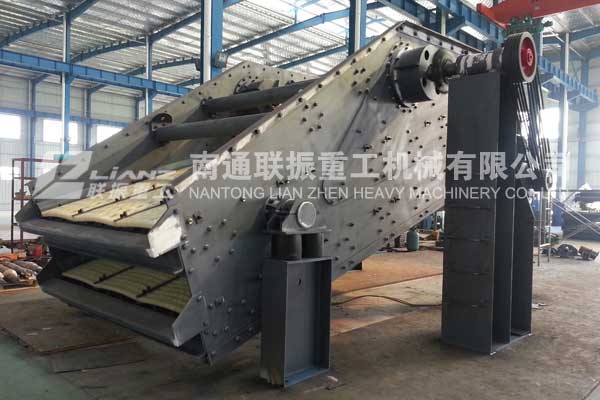

Circular Vibrating Screen
Circular Motion Vibrating Screen

Main Purpose and Features of DYS Large Circular Motion Vibrating Screen

The motion trajectory of DYS large circular motion vibrating screen is a circle, which can be used for dry classification of materials in coal preparation, mineral processing, building materials, electric power and chemical industries.

The DYS large circular motion vibrating screen is connected by a toothed belt between the two shafts driven by dual motors to keep the two shafts running synchronously. When the mesh size of the woven screen is less than 25mm, there is a rapping ball under the screen. The screen machine has the characteristics of advanced structure, vertical solidity and durability, low vibration and noise, not easy to block holes, high processing capacity, and maintenance.

Read More: Guide to the Best Vibrating Screen in 2023

Circular Vibrating Screen
Circular Motion Vibrating Screen

Notes of DYS Large Circular Motion Vibrating Screen

  • The sieving machine is divided into single layer and double layer;
  • The screen structure includes woven mesh and punched screen plate;
  • The motor can be installed on the left or right side, and if there is no requirement, install it according to the installation diagram;
  • The rated voltage of the motor is 380V, explosion-proof motors or motors with different rated voltages are available, please specify when ordering if you choose;
  • The feeding box is an optional part. If the user does not make a request, it will be supplied according to the normal installation drawing, and the feeding box will not be supplied;
  • It can design non-standard products such as changing the screen surface structure or technical performance for users;
  • The foundation bolts are prepared by the user.

Technical Performance and Parameters of DYS Circular Motion Vibrating Screen

ModelLayersrArea (m2)Angle (°)Hole sizeMesh(mm)Capacity(m3/h)Motor ModelMotor PowerMotor quantity
DYS3073122.3205-50<300300-1300Y200L-4302
2DYS3073222.320Top 20-50
Lower 5-20
<300300-1300Y200L-4302
DYS3373124.5205-50<300350-1450Y200L-4302
2DYS3373224.5205-50Top 20-50
Lower 5-20
350-1450Y200L-4302
DYS3673126.7205-50<300400-1560Y225S-4372
2DYS3673226.720Top 20-50
Lower 5-20
<300400-1560Y225S-4372
